Camera module restart

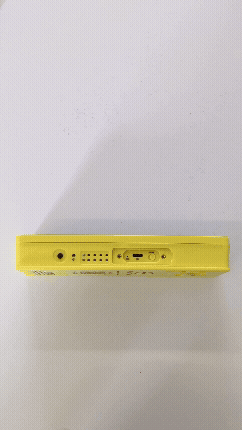

The device can be restarted using the slider switch. To do this, the cap must be unscrewed. If the trap is still switched on, the switch must be moved to "OFF" once. Then wait 30 seconds before the switch can be moved back to "ON".


Important: After each restart, the device displays a test image.


Once this is complete, the startup sequence follows:



  • The green LEDs on the bottom bar immediately indicate the battery status after restarting.
  • The LEDs on the top bar initially flash alternately yellow; the device is searching for a signal. Afterwards, the device indicates the signal strength with blue LEDs on the top bar.
  • The single yellow LED then flashes, indicating the upload status of the captured image.
    Once the image is uploaded, the LED stops flashing.
